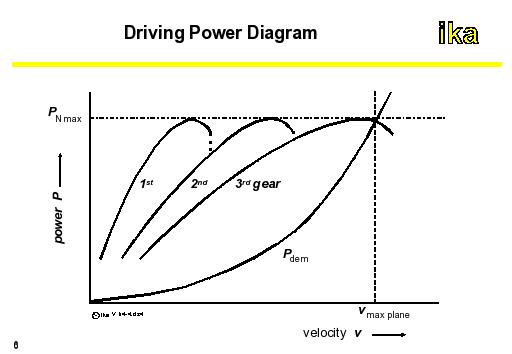

In this way, the driving power diagram arises from the traction force diagram. In the former, the line of constant maximum power is also drawn in (figure above). The full load power curves that can be driven in different gears are also indicated.
From the driving power as well as traction force diagrams for driving in the plane, the maximum speed vmax and the excess traction force FX,ex available for acceleration or climbing, can be determined.
