These features are typically associated with the usability and safety of the fixture which, whilst important,
do not directly influence its overall purpose.

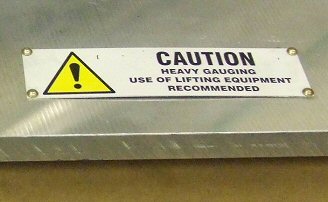

Weight and dimensions
Has considerable implications on how the fixture is handled - can it be lifted by one person? Is special lifting/handling equipment needed? Will it fit within the operating envelope of the measuring equipment?

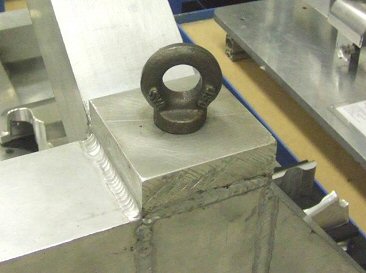

Lifting features
Handles, lifting eyes and/or fork lift tubes must be considered as part of the fixture design. Lifting chains, harnesses and frames, and centre of gravity must also be considered.
Storage
Custom made storage racks may be required and a dedicated storage area should be allocated. Proximity to production line/metrology area may also be important.

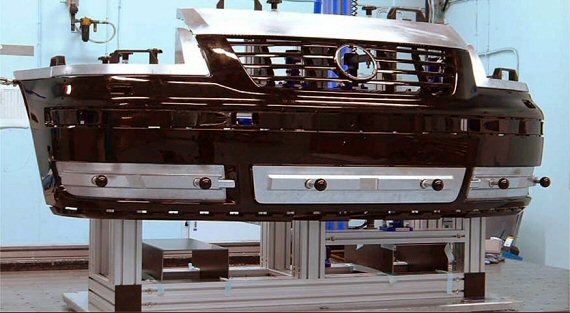

Simulators
Useful for visual and basic gap and flush assessment against interfacing components/surfaces. Will add complexity and cost to fixture and may need additional storage facilities.
Ergonomics
Usability of the fixture should be an important consideration with quick and easy loading/unloading of parts, access to pins and clamps, and general handling health and safety being particularly important.

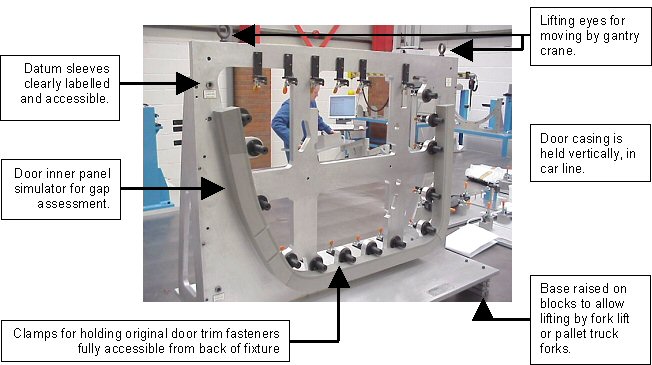

A well designed, user friendly door casing fixture.
Flexibility
May be necessary if different part variations are to be inspected. Also useful if fixture is to be used both on line and in metrology room. Can reduce modification costs.
Click the small boxes at the top for more information on each feature.
