Illustrations of the Method

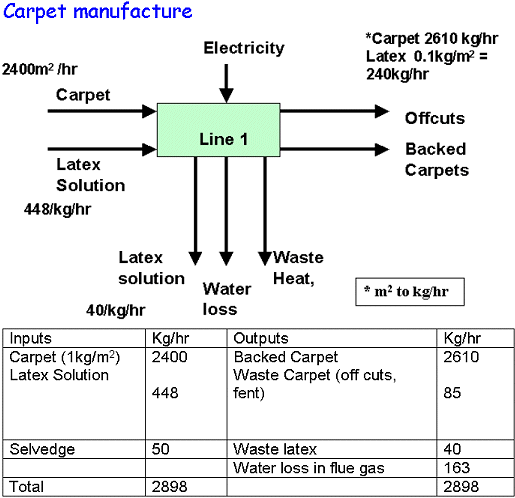

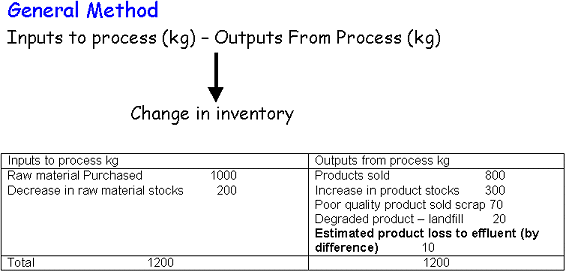

The following tables illustrate the mass balance method.

Task 5:

Sankey Diagrams are useful to illustrate the flow of materials and waste, they are particularly good to present data showing recycling streams, for example rework, reprocessing, corrections etc and can be used to illustrate the improvements being made by the workforce. Derive a Sankey for a process in the workplace, or alternatively use a process you have investigated.
