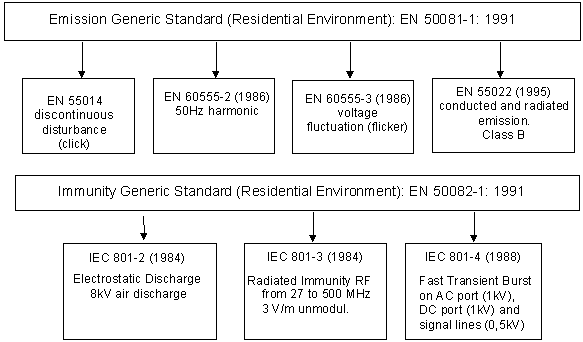

Generic emission (EN 50081-1) and immunity (EN 50082-1) standards : domestic and light industry
environment
EN 50081-1 Emission tests
- Enclosure : radiated emission from 30 to 1000MHz as per EN 55022 Class B; applicable only to apparatus containing
processing devices operating above 9kHz.
- AC main port : conducted emission from 150kHz to 30MHz as per EN 55022 Class B; discontinuous interference measured
at spot frequency as per EN 55014; main harmonic emission measured as per EN 60555 part 2.
EN 50082-1 Immunity tests :
- Enclosure : radiated RF field from 27MHz to 500MHz as per IEC 801-3 (1988) at 3V/m; electrostatic discharge as per IEC
801-2 (1984) at 8kV (air discharge).
- All I/O and main ports : Electric fast transient 5/50ns common mode as per IEC 801-4 (1988), amplitude 0.5 or 1kV
dependent on type port and method of coupling.
|
