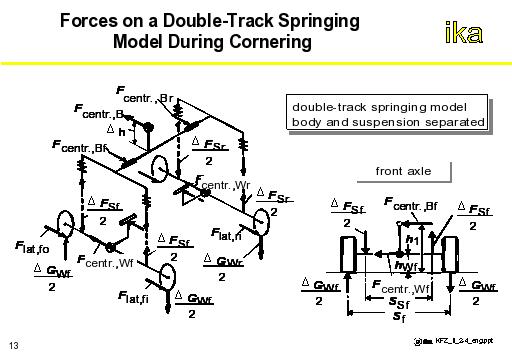

The slide shows the schematic of a four wheel vehicle model with all the forces included.
The single track model with the body separated is also indicated in the case of the front axle.
The model is used as a basis for the determination of the load changes acting on the wheels during cornering, based on the geometric parameters of the axles, the position of the role poles and the centre of gravity of the vehicle.
