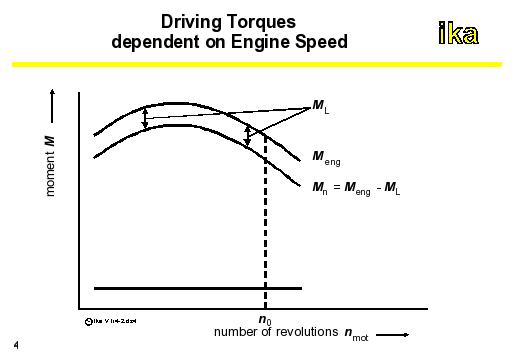

In this way, the characteristic of the net torque can approximately be determined (Fig. 3-2) from the engine's full load torque curve by a simple subtraction of the constant torque loss.
From the definition of the net torque Mn, a relation for the traction force dependent on the engine speed can be defined as follows:
