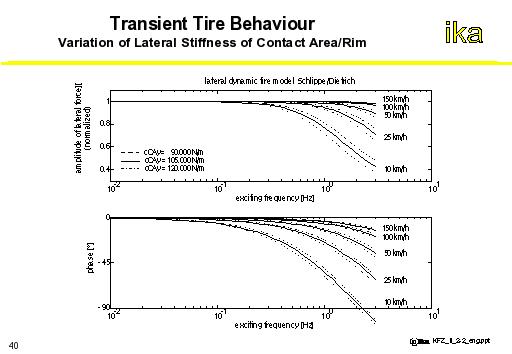

The results of the simulation carried on MATLAB using the Böhm and Schlippe/Dietrich models are shown in the figure. In this case the phase difference is indicated as a function of the excitation frequency.
This brings us to the end of the lecture on the lateral characteristics of tires. The next lecture deals with the Single Track Vehicle Model on the basis of which the lateral dynamics of vehicles are explained in detail.
