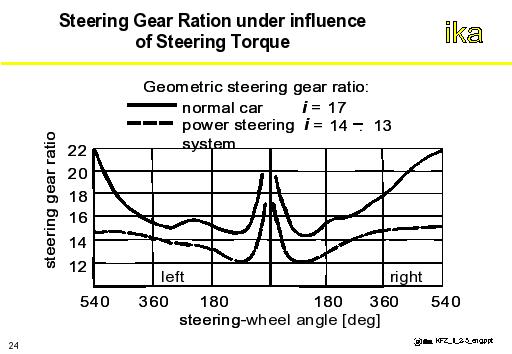

Loss of steering angle due to elasticities
-> steering elasticity especially in straight-ahead position (indirect gear ratio)

Geometric gear ratio after 30 – 60° steering wheel angle
