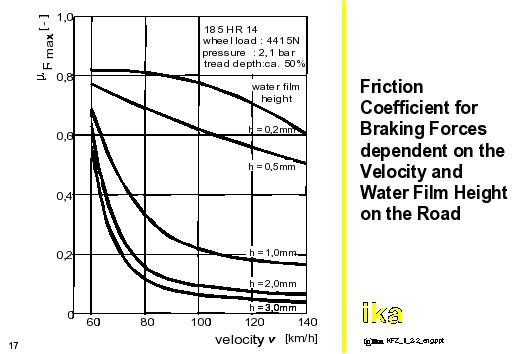

The figure shows the variation of the co-efficient of friction for braking forces as functions of the vehicle velocity and water film thickness. From the figure it is clear that for water film thickness greater than 0.5 mm, a drastic fall in the transferable braking force results. The drop in transferable forces with increasing velocity can be attributed to the lack of time available for the tire to break through the water film and make contact with the road surface.
