Types of Control Chart

There are, in fact, several different charts, but each is used in essentially the same way.

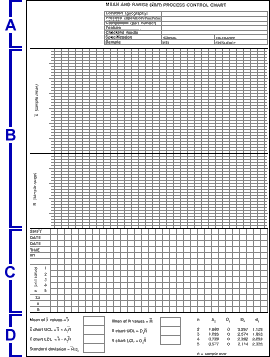

Click on each of the labelled sections on the chart shown here for more information about the essential components of a process control chart.

Each chart belongs to one of two types:

• those which monitor variable data
• those which monitor attribute data

Let's look at the differences between the two types of data and at the charts which can be used to monitor each type.
