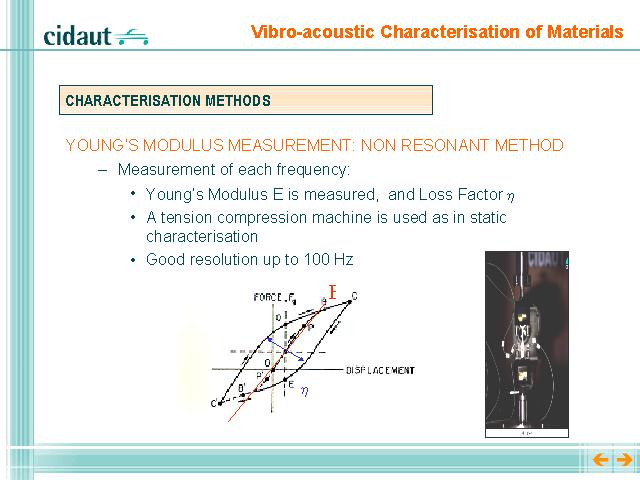

Next, an example of the mechanical properties characterisation by the non resonant method is shown.
As explained previously, this method works correctly up to the first resonance but it only works for low frequencies.
The stress- strain curve is measured and we can obtain the Young's Modulus and the Loss factor from it.
