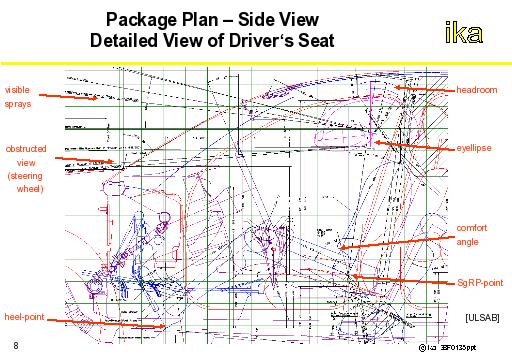

The slide shows the detailed package plan for the conception of the driver's seat.
The package plan includes all the details necessary for the design of the driver's seat. From the figure, it is clear that the visibility rays, seating angles, significant seating points as well as the significant distances, such as the available head-room are included. The eye-ellipse for the entire range of population from the 5% female upto the 95% male are included.
