A common vehicle brake system consists of:
a) The control device : Pedals, Hand-Brake Lever
b) The transmission unit: Components between control device and brake
hydraulic
pneumatic brake-power transmission
mechanical
c) The wheel brakes.

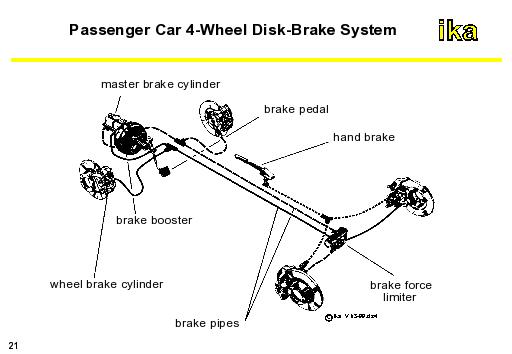

The figure shows the components of a 4-wheel disk-brake system with a diagonal brake circuit layout (explained in the following section) for passenger cars.
