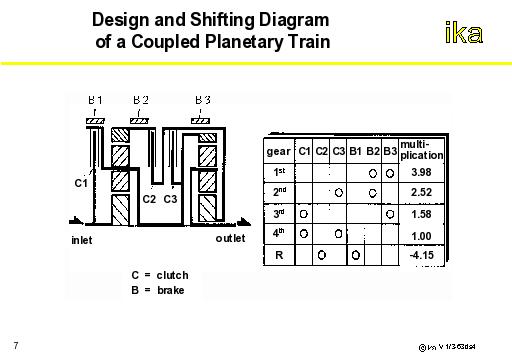

The figure shows the principle sketch of a 4-speed transmission with 2 planetary sets and the appropriate shift clutch agents.
Drive is transferred over one sun gear, or in the case of a blocked second planetary train, over two sun wheels. The output takes place over the planetary carrier of the rear planetary train. The particular gear ratios result from the repeated use of the basic equation, according to the number of planetary trains involved.
