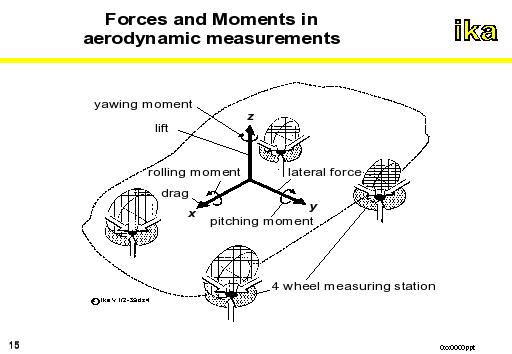

the forces and moments in aerodynamic measurements are detected by means of a 6-component measuring scale
3 forces and moments each are measured:
Aerodynamic drag
Transverse force
Lift
Yaw moment
Rolling moment
Pitching moment
Since a constant vehicle flow is required, a track and friction-free measurement is required, it can be achieved by DMS, hydraulic or pneumatic bearings.
