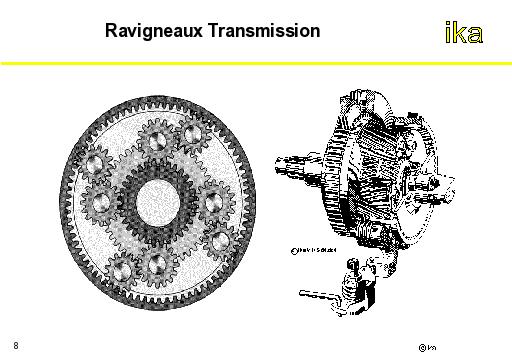

In automatic transmissions, often special designs of coupled planetary transmissions are used. The figure above shows a Ravigneaux-transmission that distinguishes itself through a simple design of favorable gear ratios and a low constructional space. The design and shifting diagrams are shown in the following diagram.
Drive takes place over the sun wheels, while the output is derived over the hollow gear in the transmission shown. The short and long planetary gears are connected by a common bar.
