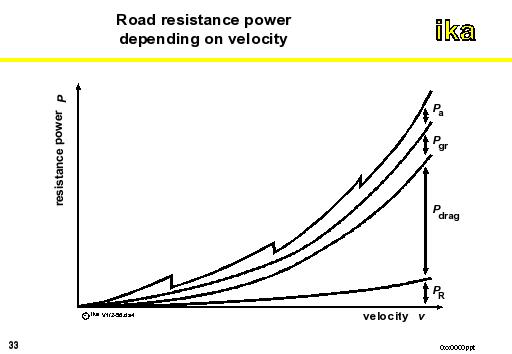

The road resistance curves are also called demand characteristics, since they reflect the driving torque that a vehicle requires for different driving conditions. If the power demand is required, in each case the curves shown in slide 62 have to be multiplied with the driving speed. The resulting characteristic diagram is shown.
The "supply" from the vehicle powertrain has to correspond to these groups of demand curves in order to achieve the longitudinal dynamics corresponding to the required driving conditions.
