1.4.1 Single Mass Model

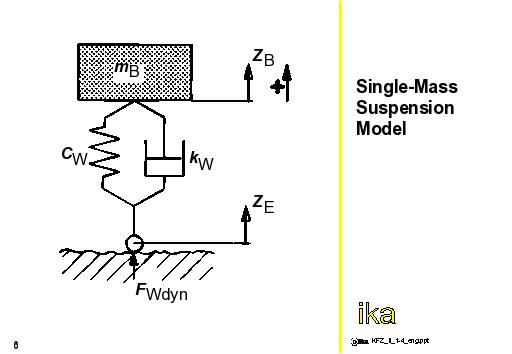

The simplest vehicle model is the single mass model as shown in the figure. The mass corresponds to the proportion of body mass, which acts on the wheel. The axle mass is connected as unsprung mass to the body. The task of the suspension - e.g. in construction machines or dumper trucks - is entirely taken over by the tire. Only the tire damping acts as a shock absorber.
