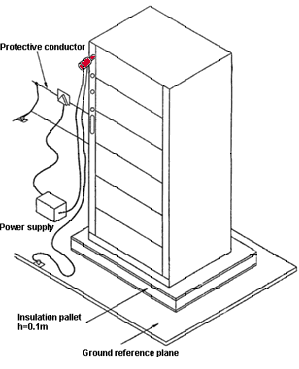

Discharge direct by contact
To use only on the the testing apparatus parts non isolated. In this test, high current is generated (and associated
magnetic field).
The electrostatic discharge is controlled since it originates in the internal relay of the gun.
This method is preferable to the discharge in the air because of reproducibility (humidity, speed, approach).>
All accessible points (by users) are to be tested.
|
