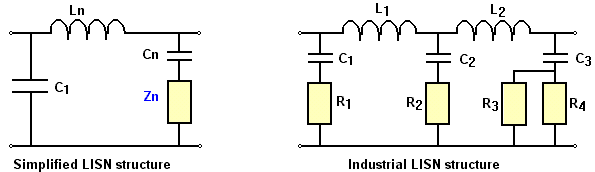

LISN Topologies

Various LISN topologies are available to comply with the normalised impedance. To each topology corresponds a set of different component values.

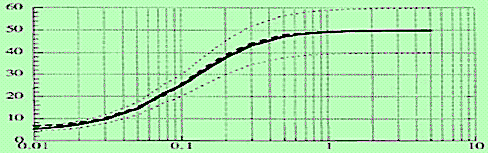

Normalised Impedance

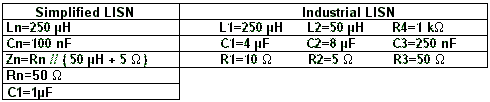

Component Values
