Chart Plotting Exercise (6)

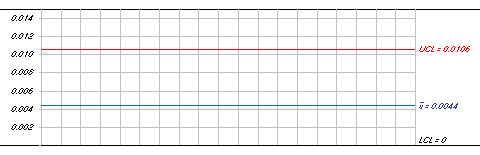

Having recorded the data, you must now plot the u value of 0.006 on the graph. To do this, you make a mark on the first vertical line at the point where the scale indicates the value of 0.006.

Click on the image below to indicate where you think the point should be plotted.

Add the point, at the appropriate location, to your printed chart before moving on.
