Chart Plotting Exercise (9)

Now that we have calculated both values, we can make the necessary plots on the charts.

Module A6 A5 C2
Date Completed 20/8 21/8 23/8
Actual 33.0 37.5 48.0
Estimated 37.5 30.0 37.5
X -4.5 7.5 10.5
mR   12.0 3.0

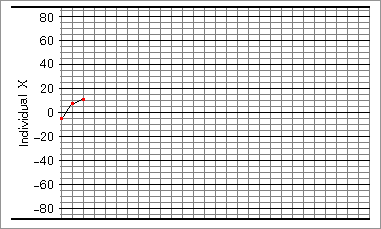

Firstly, plot the X value on the X graph:

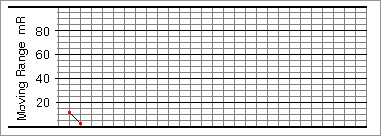

And then the mR value on the mR graph. Don't forget to join the points with a straight line:

Finally, we must remember to enter a mark on the distribution of X graph:
